Indoor Programmable

https://lemelettronica.it/wp-content/uploads/2023/11/DSP40PRO-1.jpg

DSP40Pro+

High selectivity programmable compact headend to digitally filter, convert and equalize DVB-T / T2 channels. The built in high output amplifier allow the use in medium and large installation plants.

The advanced adjustment and programming features allow this product to improve the quality of received signals.

Programming can be done directly via buttons and LCD display or via USB port with Android application.

Specifications

Total output level max 126dBμV
50dB digital filters on adjacent channels
Single filter selectable mode Standard/Narrow/Wide
Channel to channel conversion
Manual filter level adjustment with smartphone programming
Filter frequency OFF-SET adjustment with smartphone programming
UHF inputs Lte 700 filter with SAW technology
Dual-stage input amplifiers
Wide band AUX (40... 860MHz) input
DAB filter 174... 230MHz
Automatic Channel search from all inputs
Manual programming from display and APP
https://lemelettronica.it/wp-content/uploads/2023/12/DSP40plus.jpg

DSP40Plus

High selectivity programmable compact headend to digitally filter, convert and equalize DVB-T / T2 channels. The built in high output amplifier allow the use in medium and large installation plants.

The advanced adjustment and programming features allow this product to improve the quality of received signals.

Programming can be done directly via buttons and LCD display or via USB port with Android application.

Specifications

Total output level max 123dBμV
50dB digital filters on adjacent channels
Single filter selectable mode Standard/Narrow/Wide
Channel to channel conversion
Manual filter level adjustment with smartphone programming
Filter frequency OFF-SET adjustment with smartphone programming
UHF inputs Lte 700 filter with SAW technology
Dual-stage input amplifiers
DAB filter 174... 230MHz
Automatic Channel search from all inputs
Manual programming from display and APP
https://lemelettronica.it/wp-content/uploads/2023/03/DSP40PRO.jpg

DSP40pro

High selectivity programmable compact headend to digitally filter, convert and equalize DVB-T / T2 channels. The built in high output amplifier allow the use in medium and large installation plants.

Specifications

24 Digits LCD display
Auto-Tuning function
Additional AUX input
Maximum Output Level 124dBμV
Selectable Lte 4G/5G SAW filters
Up to 64 High Selectivity Filters with ACG
Converts up to 32 single channels
Zamak die casting chassis
https://lemelettronica.it/wp-content/uploads/2023/03/DSP40.jpg

DSP40

High selectivity programmable compact headend to digitally filter, convert and equalize DVB-T / T2 channels. The built in high output amplifier allow the use in medium and large installation plants.

Specifications

24 Digits LCD display
Auto-Tuning function
Additional AUX input
Maximum Output Level 120dBμV
Selectable Lte 4G/5G SAW filters
Up to 64 High Selectivity Filters with ACG
Converts up to 32 single channels
Zamak die casting chassis
https://lemelettronica.it/wp-content/uploads/2023/03/DSP35sat-4.jpg

DSP35-SAT

Programmable compact multi-input multiband head-end to digitally filter, convert and equalize DVB-T / T2 channels. The built-in amplifier with adjustable output allows the use in small or medium multi dwelling units.

Specifications

24 Digits LCD display
3 TV Terrestrial inputs
1 Satellite 950... 2.200MHz input
1 FM input
Auto-Tuning function
SAW filters against Lte 5G / 4G interferences
A.C.G. in each filter
32 high selectivity digital filters
Zamak chassis for high screening protection
https://lemelettronica.it/wp-content/uploads/2023/03/DSP35-1.jpg

DSP35

Programmable compact multi-input multiband head-end to digitally filter, convert and equalize DVB-T / T2 channels. The built-in amplifier with adjustable output allows the use in small or medium multi dwelling units.

Specifications

24 Digits LCD display
5 Inputs
Auto-Tuning function
SAW filters against Lte 4G and 5G interferences
A.C.G. in each filter
32 high selectivity digital filters
DC powering from plug or coaxial output
32 high selectivity digital filters
Zamak chassis for high screening protection
https://lemelettronica.it/wp-content/uploads/2023/03/DSP20-1.jpg

DSP20

Programmable compact multi-input multiband amplifier to digitally filter, convert and equalize DVB-T / T2 channels. Ideal for fibre installation.

Specifications

24 Digits LCD display
5 Inputs
Auto-Tuning function
SAW filters against Lte 4G and 5G interferences
A.C.G. in each filter
32 high selectivity digital filters
DC powering from plug or coaxial output
32 high selectivity digital filters
Zamak chassis for high screening protection
https://lemelettronica.it/wp-content/uploads/2023/03/DSP25SAT.jpg

DSP25-SAT

Multi-input amplification unit with programmable digital filters for equalization and frequency conversion of DVB-T/T2 MUX.

Amplified input for the satellite band 950÷2.200MHz.

Integrated high efficiency power supply for low consumption and high reliability.

Specifications

32 programmable digital filters with automatic gain control
Direct manual configuration with 24-digits LCD display
Total output level 120dBµV
4G/5G input protection
Wall or DIN bar fixing
Passcode protection
Input satellite 950÷2.200MHz
https://lemelettronica.it/wp-content/uploads/2023/03/DSA25-1.jpg

DSA25

Multi-input amplification unit with programmable digital filters for equalization and frequency conversion of DVB-T/T2 MUX.

Advanced digital filtering with the possibility of choosing whether to program it  with the SmartScan function (integrated tuner) automatically or  via an application available for Apple and Android smartphones manually.

Integrated high efficiency power supply for low consumption and high reliability.

Specifications

32 programmable digital filters with automatic gain control
Direct manual configuration with smartphone
Total output level 120dBµV
4G/5G input protection
Wall or DIN bar fixing
Passcode protection
https://lemelettronica.it/wp-content/uploads/2023/03/DSA15-5G.jpg

DSA15-5G

Programmable compact multi-input multiband amplifier with integrated tuner for completely self-contained programming.

Specifications

Output level adjuster 80... 100dBμV
AUTO Programmig key (to run SmartScan)
Ground clamp
DAB ON/OFF selector switch
FM -10dB / +15dB gain level selector switch
Multi-function LED
MATV output /remote power 12...15VDC
230VAC 50/60Hz Mains input
https://lemelettronica.it/wp-content/uploads/2024/04/DSP15-5Gv2.jpg

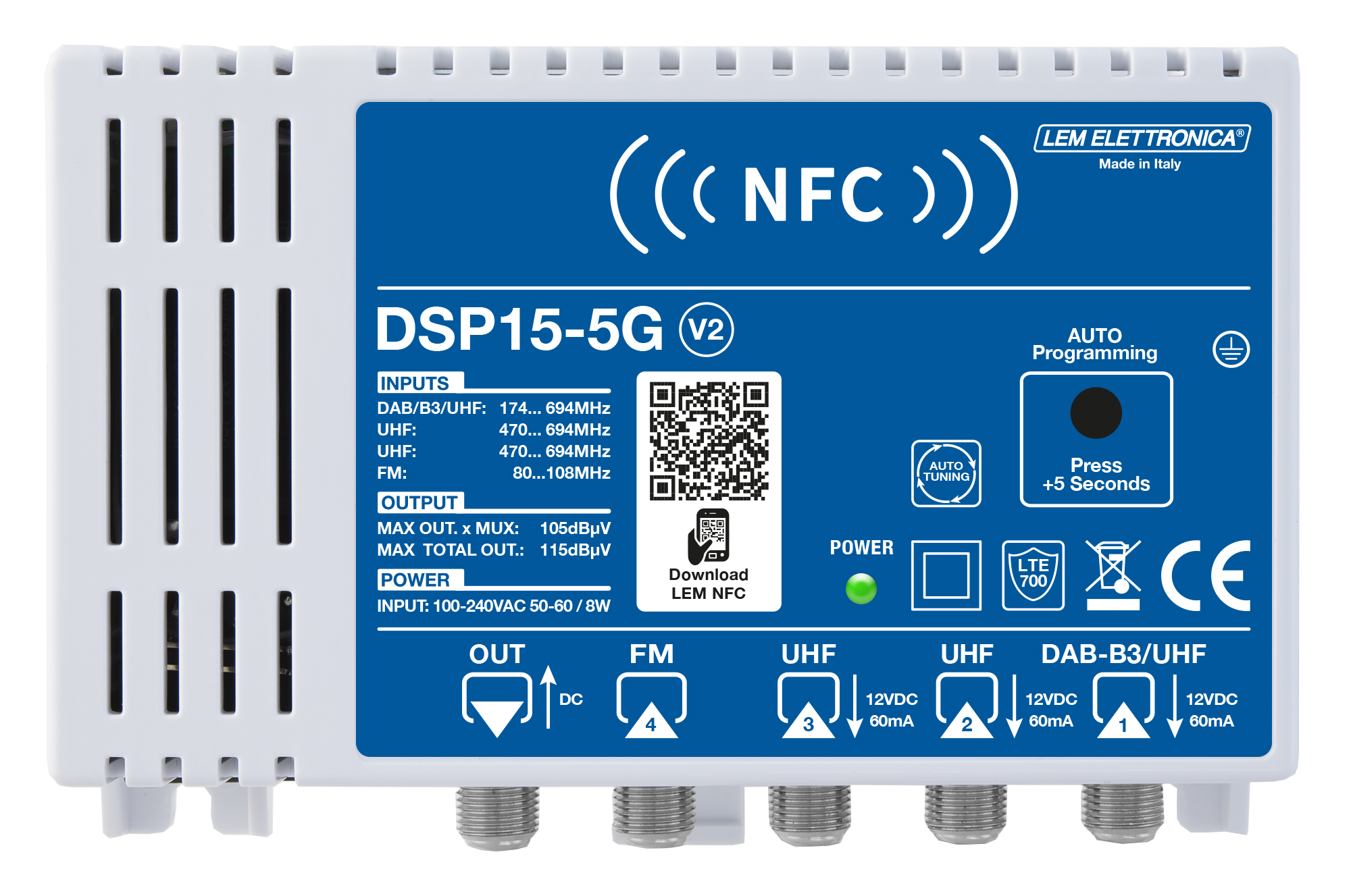

DSP15-5G V2

Programmable compact multi-input multiband amplifier programmable by App available for Apple iOS and Android smartphone. Once the parameters and settings have been defined (filters, output level, remote power supplies, etc…) it is sufficient to bring the smartphone near the control unit and via NFC in a few seconds the configuration is transferred and stored.

Specifications

NFC antenna
BIII / DAB / UHF(E21... E48) aerial input
UHF (E21... E48) aerial input
UHF (E21... E48) aerial input
Multi-function LED
Antenna input (4) FM (88... 108MHz)
MATV output / remote power 12...15VDC
100-240VAC 50/60Hz Mains input
